Machining centers and lathes

Machines PDF

Machining Center HERMLE C32

  • Work Area:

    X:650 – Y: 650 – Z: 500mm

  • Head speed:

    18.000 tr/mm

  • Linear Speed:

    60 m/min

  • Linear Acceleration:

    10 m/s²

  • Control Unit:

    TNC 640

  • Tools of Work:

    88 tools integrated loader

Machining Center HERMLE C32

Doosan Puma 2600Y

  • Max. Turning Diameter

    376 mm

  • Max. Turning Lenght

    760 mm

  • Bar Working Diameter

    Ø76 mm

  • X/Z rapid movements

    30 m/min

  • Y rapid movements

    10 m/min

  • Max. Spindle Speed

    4000 r.p.m.

  • Automatic door

  • Programmable point

Doosan Puma 2600Y

Matsuura MX 520 (2024)

  • 5-axis vertical machining center, with a working capacity of: X: 520 mm, Y: 330 mm, with a maximum of 175 kg.

  • Head speed

    20000 r.p.m.

  • X/Y/Z rapid movements

    40 m/min

  • Work area

    Ø300 mm

  • TRAVELS

  • X-axis travel

    630 mm

  • Y-axis travel

    560 mm

  • Z-axis travel

    510mm

Matsuura MX 520 (2024)

Takisawa TT-2600G

  • Double spindle and double turret lathe

  • Capacities

    Ø 200/120mm

  • Number of axes

    3(X + Z + C) x 2

  • Max. speed

    4,000 r.p.m.

  • Gantry loader

Takisawa TT-2600G

DMU 60 eVo linear

  • Working area

    X-600 / Y-500 / Z-500 mm

  • Motor spindle

    18000 r.p.m.

  • B-axis swivel range

    (-5º/+110º)

  • C-axis rotation

    360º

  • Feed drive X/Y/Z

    50 m/min

DMU 60 eVo linear

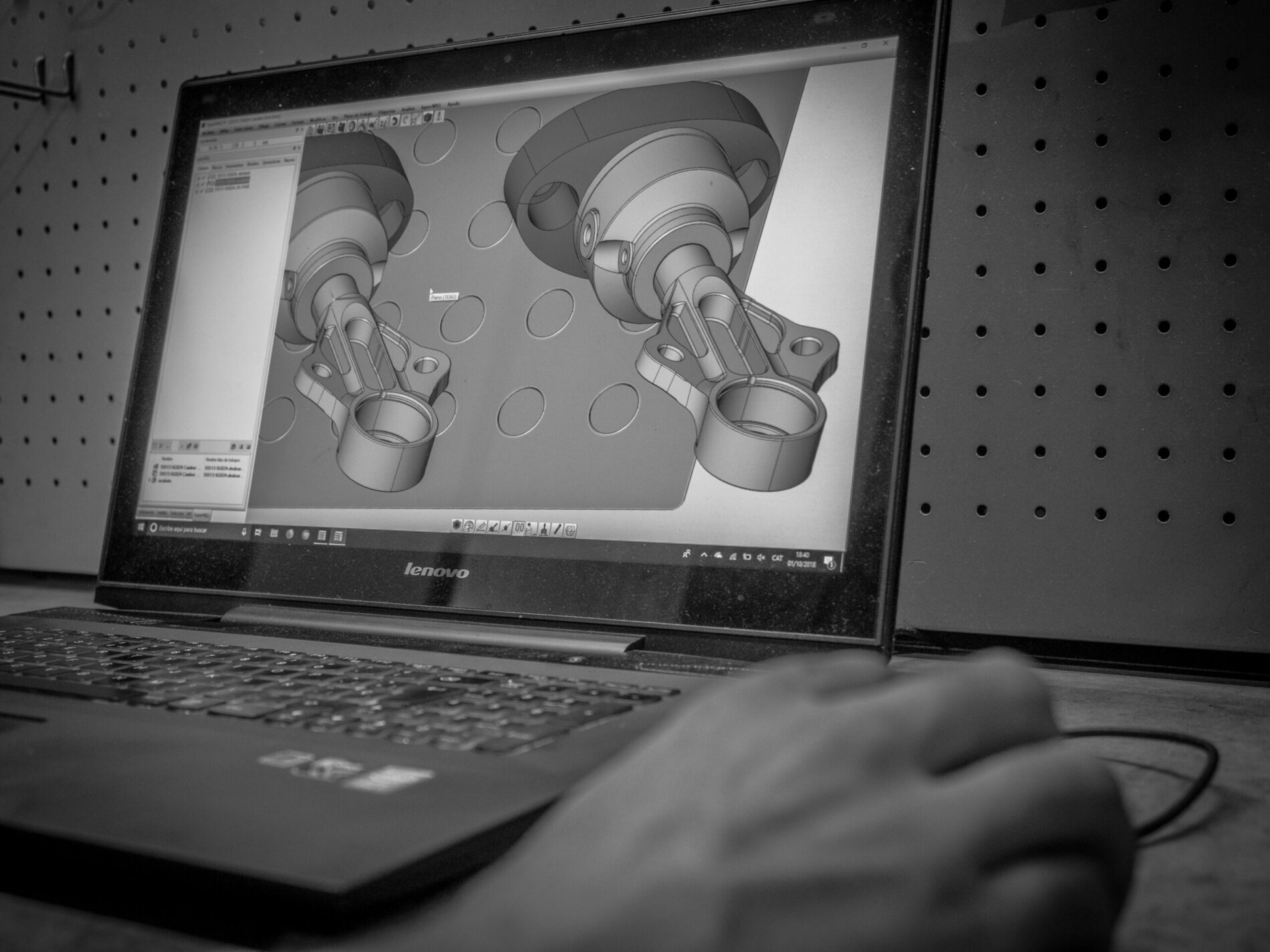

CAD-CAM Hypermill & Mastercam

  • Milling tasks

    2.5D, 3D and 5-axis

  • High Speed Cutting (HSC) and High Performance Cutting (HPC)

  • Simultaneous 3-axis milling and turning

CAD-CAM Hypermill & Mastercam

Keyseater MEC-80x440x800
Keyseater MEC-80x440x800

DPL Genesis Marker

  • Useful working area

    100 x 100 mm

DPL Genesis Marker

Matsuura MX 520

  • A 5 tool vertical machining centre, with a work capacity of: X: 630 mm, Y: 560 mm, Z: 510 mm.

  • Headstock revs

    12000 rpm

  • X/Y/Z rapid movements

    30 m/min

  • Work area

    500Ø mm

Matsuura MX 520

Doosan Puma 200

  • 2 shaft CNC lathe.

  • Maximum turnable diameter

    200 mm

  • Maximum turnable length

    400 mm

  • Headstock revs

    4000 r.p.m.

Doosan Puma 200

Doosan Puma 230MB

  • CNC lathe with machined tools with “C” shaft. Fitted with a bar loader and a part collector for carrying out work with a bar and for continuous working.

  • Maximum turnable diameter

    200 mm

  • Maximum turnable length

    510 mm

  • Headstock revs

    5000 r.p.m.

  • Machined tool revs

    6000 r.p.m.

Doosan Puma 230MB

Awea AF 1000

  • Vertical machining centre with a capacity of: X: 1000 mm, Y: 600 mm, Z: 600 mm and with a 200 mm diameter fourth shaft incorporated.

  • Headstock speed

    15000 r.p.m.

  • X/Y/Z rapid movements

    25 m/min

  • Dimensions of the table

    1200 x 660 mm

Awea AF 1000

Doosan Puma 2000Y

  • CNC lathe with machined tools with “Y” and “C” shafts.

  • Maximum turnable diameter

    200 mm

  • Maximum turnable length

    510 mm

  • X/Z rapid movements

    25/30 m/min

  • Headstock revs

    5000 r.p.m.

  • Motorised tool revs

    6000 r.p.m.

  • Y shaft travel

    118 mm (from -50 mm up to 68 mm)

Doosan Puma 2000Y

Doosan MYNX 540

  • Vertical machining centre with a capacity of: X: 1000 mm, Y: 600 mm, Z: 600 mm and with a 200 mm diameter fourth shaft incorporated.

  • Headstock revs

    6000 r.p.m.

  • X/Y/Z rapid movements

    25 m/min

  • Dimensions of the table

    1200 x 660 mm

Doosan MYNX 540

Doosan Puma MX 2100 ST

  • Its perfect combination of lathe and machining centre makes it possible to perform a wide range of simple and complex operations with unprecedented flexibility.

  • Maximum turnable diameter

    300 mm

  • Maximum turnable length

    1020 mm

  • Maximum bar capacity

    65 mm

  • Headstock revs

    5000 r.p.m.

  • Maximum revs milling head

    12000 r.p.m.

Doosan Puma MX 2100 ST
